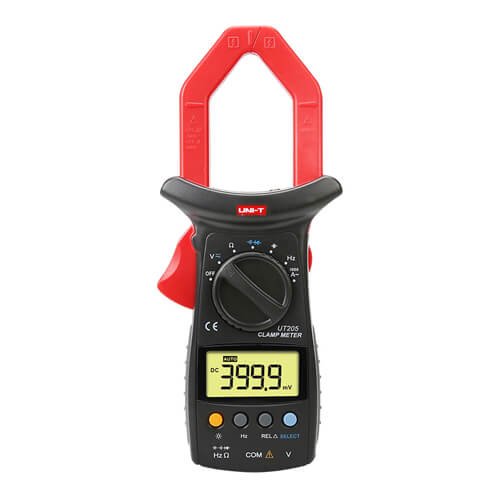

UNI-T UT205 Digital Clamp Meter 1000A

৳ 5,000.00

  • Digital Clamp Meter 1000A
  • Model: UT205
  • Brand: UNI-T


UT205 is a low-power, stable, safe, and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance.
The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical, and other industries.
AC Current (A)400A/1000A±(1.5% 5)
400A/1000A≥800A:±(3% 5)
AC Voltage (V)4V/40V/400V/600V±(1.2% 5)
DC Voltage (V)400mV/4V/40V/400V/600V±(0.8% 1)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(1% 2)
Frequency (Hz)10Hz~10MHz±(0.1% 3)
Display count3999
Auto range
Jaw opening40mm
Duty cycle0.1%~99.9%
Diode test
Auto power off
Continuity buzzer
Low battery indication
Data hold
LCD backlight
Full icon display
Input impedance for DCV≥10MΩ
General Characteristics
Power9V battery (6F22)
LCD size56.4mm × 37mm
Product ColorRed and grey
Product net weight522g
Product size106.4mm × 52mm × 257mm

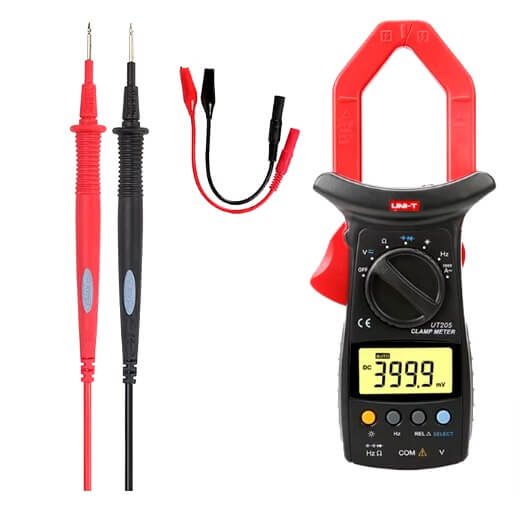

Standard accessoriesBattery, test leads, alligator clips
standard individual packingToolbox, gift box
Standard quantity per carton20pcs
Standard carton measurement598mm × 375mm × 485mm
Standard carton gross weight27.3kg


Click for More Information
