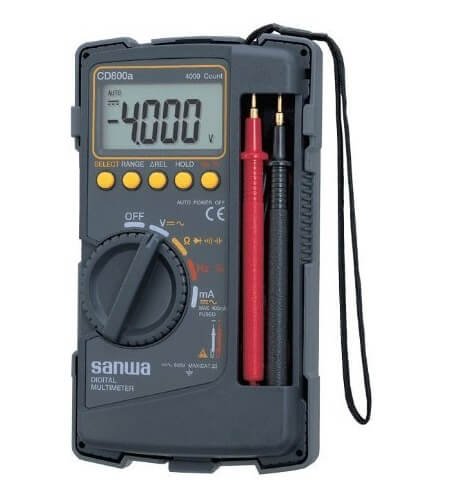

Sanwa CD800a Digital Multi-meter

৳ 3,800.00

  • Digital Multimeter
  • Brand: Sanwa
  • Model: CD800A
  • Origin: Japan, Made in China

Description

Sanwa CD800A Digital Multimeter This auto-ranging multimeter will test AC and DC voltage and current as well as capacitance, resistance, and frequency. It features a large, easily readable display for use in the field. It has all of the basic functions that you expect from a good digital multimeter including continuity check (with buzzer), diode test, and data hold.

Features:

  • 3-3 / 4 digits 4000 count
  • 0.7% best accuracy
  • Capacitance measurement (Not suitable for measurement of condensers with large leakage current)
  • Frequency measurement (AC sine wave only)
  • Data hold / Range hold
  • Auto power off (30min.) (cancelable)
  • AC frequency bandwidth: 40〜400Hz

Specification:

FunctionMeasuring RangeResolutionInput Impedance
DC Volt400m/4/40/400/600V0.1mvDC:10M-100MΩAC:10M-11MΩ
AC Volt4/40/400/600V0.001v
DC Ampere40m/400mA0.01mA
AC Ampere40m/400mA0.01mA
Resistance400/4K/40K/400K/4M/40MΩ0.1Ω
Capacitance50n/500n/5μ/50μ/100μF0.01nF
Frequency5HZ-100KHZ
Duty Cycle20%-80%
ContinuityBuzzer sounds at between 10Ω and120Ω. Open Voltage: Approx.0.4V
Diode TestOpen voltage: Approx. 1.5V
Bandwidth40-400HZ (sine)
Size/WeightH176*W104*D46mm/340g

Origin: Japan, Made in China.
