Description

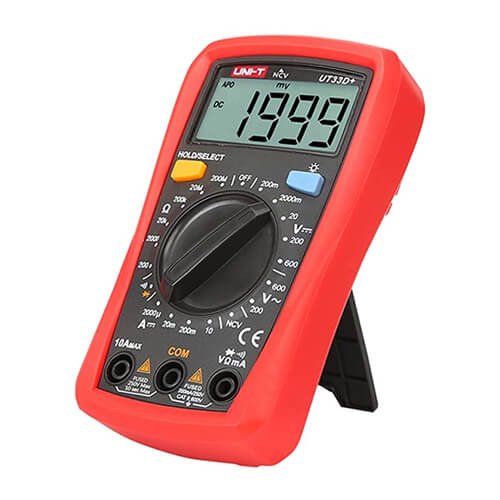

- The new generation UT33 series redefines the performance standards for introductory digital multimeters.
- Our innovative industrial design makes sure that these products can withstand 2 2-meter drop.
- The new LCD display layout provides a better user experience.
- The UT33 series safety standards have also been enhanced to ensure that users can work safely in a CAT ll 600V environment.
Features:
- Clear LCD display

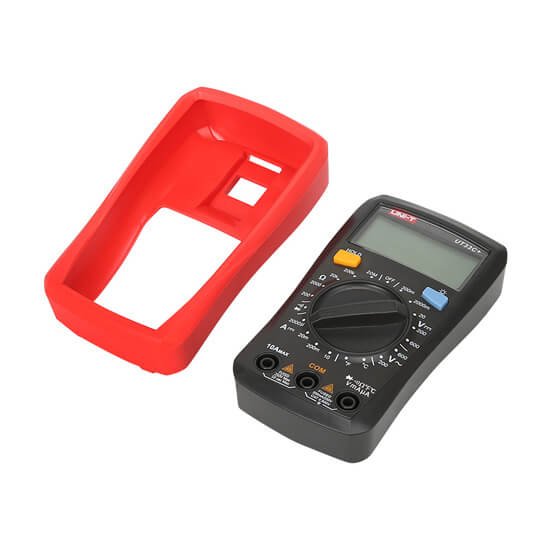

- Equipped with comfortable protective cover, test lead hanging slot
- 2m drop-proof with precision protection
- Auto power off
- Auto backlight off
- Loud buzzer
- Ergonomically designed rotary switch
| Specifications | Range | UT33D |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2% 3) |
| DC current (A) | 2000μA/20mA/200mA/10A | ±(1% 2) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ /200kΩ/20MΩ/200MΩ | ±(0.8% 2) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Manual | |
| NCV | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product Color | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 640mm x 310mm x 350mm | |
| Standard carton gross weight | 19.8kg | |
