Description

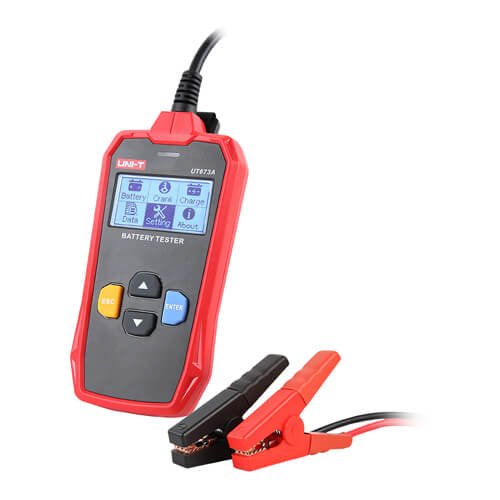

UT673A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 30Ah to 200Ah. These CE-certified testers can rapidly and accurately detect common faults caused by batteries. UT675A also includes USB communication and a built-in printer for report generation.
- 12V cranking lead acid battery test
- 12/24V charging or cranking system test
- Display battery capacity, voltage, resistance, and life
- Four-terminal Kelvin test
- 10 types of battery standards
- Language option (Chinese/English)
- Test without battery disassembly
- LED color indication for test result (UT673A)
- Print online and real-time test reports (UT675A)
- USB data transfer (UT675A)
| Specifications | Range | UT673A |
| Certificates | CE, FCC, RoHS | |
| 12V battery test | 7~16V DC | √ |
| 12V/24V cranking system test | 7~30V DC | √ |
| 12V/24V charging system test | 7~30V DC | √ |
| Battery type | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery | |
| Battery capacity | 30Ah~200Ah | √ |
| Battery standard and range | CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH | |
| Over-voltage protection | √ | |
| Reverse connection protection | √ | |
| A prompt of poor contact | √ | |
| Battery status display | √ | |
| Battery life display | √ | |
| Battery capacity display | √ | |
| Battery internal resistance display | √ | |
| General Characteristics | ||
| Power | None, powered by an external source | |
| Display | 128*64 black and white lattice | |
| Product net weight | 264g | |
| Product size | 76mm x 22mm x 142mm | |
