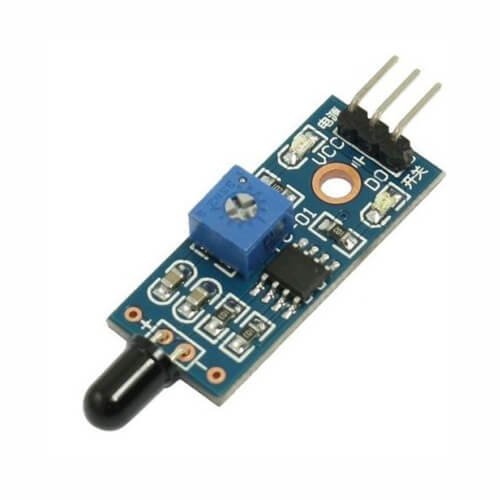

Flame Sensor Fire Detection Module for Arduino

The fire Detection Module is a green one for the switch and a red one for the power indicator light. and Built-in a potentiometer for sensitivity control. It has an Onboard signal output indication, the output effective signal is high, and at the same time the indicator lights up, the output signal can directly connect to the microcontroller IO.

Can detect fire or wavelength in 760 ~ 1100 nm nano within the scope of the light source. The detection angle is about 60 degrees, and the flame spectrum is especially sensitive. The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.

General Specification of Fire Detection Module

• Output Channel: 1
• Operating Voltage (VDC): 3.3 ~ 5
• Mounting Hole(mm): 3
• Length (mm): 32
• Width (mm): 14
• Weight (gm): 3
• Shipment Weight: 0.005 kg
• Shipment Dimensions: 4 × 2.5 × 2 cm
• Made in China
