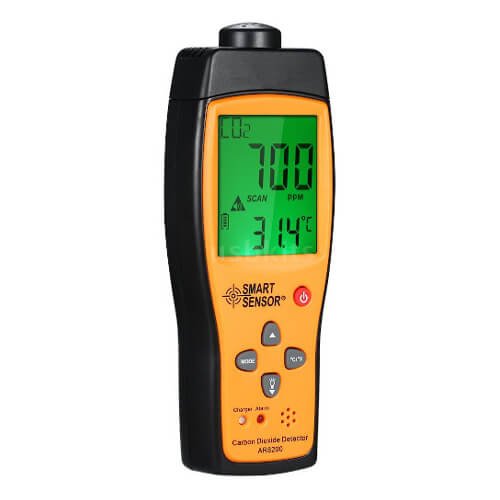

SMART SENSOR Carbon Dioxide Detector (AR8200) is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. The gas Detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave. This type of device is important because there are many gases that can be harmful to organic life.
Gas Detectors can be used to detect combustible, flammable, and toxic gases, oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacturing processes and emerging technologies such as photovoltaic. They may also be used in firefighting.
While many of the standard gas detector units were originally fabricated to detect one gas, modern multifunctional or multi-gas devices are capable of detecting several gases at once. Some detectors may be utilized as individual units to monitor small workspace areas, or units can be combined or linked together to create a protection system.
FEATURES OF SMART SENSOR CARBON DIOXIDE DETECTOR (AR8200)
- Measuring Range 350~9999PPM.
- Accuracy ±50ppm±5%rdg.
- Resolution 5PPM.
- Basic error ±(30PPM 5% rdg ).
- Response time ~90 sec.
- Recovery time Less than 120 seconds.
- Measuring Principle Electrochemical principle, life for 2 years.
- Low / High Alarm / Alarm Setting Yes.
- Display Large LCD Display.
- Operation Temperature -10~ 50℃(except LEL is 0 ~40℃).
- Operation Humidity 95%RH (Non-Gel).
- Storage Temperature 0~40℃.
- Product Weight / Size 170g / 181*63*30mm.
- Power Supply Rechargeable lithium-ion battery, 3.7 Volts (include).
- Continuous Operation Time <10 hours.
- Alarm Acoustic, an optical double alarm, can set the alarm value, and an alarm sound is divided into 80 dB.
SPECIFICATION OF SMART SENSOR CARBON DIOXIDE DETECTOR (AR8200)
|Gas Type||Carbon Dioxide (CO²)|
|Basic error||±(30PPM 5% rdg )|
|Response time||~90 sec|
|Recovery time||Less than 120 seconds|
|Measuring Principle||Electrochemical principle, life for 2 years|
|Low / High Alarm / Alarm Setting||Yes|
|Alarm||Acoustic, optical double alarm, can set the alarm value, an alarm sound is divided into 80 dB|
|Display||Large LCD Display|
|Operation Temperature||-10~ 50℃(except LEL is 0 ~40℃)|
|Operation Humidity||95%RH (Non-Gel)|
|Product Weight / Size||170g / 181*63*30mm|
|Power Supply||Rechargeable lithium-ion battery, 3.7 Volts (include)|
|Continuous Operation Time||<10 hours|
