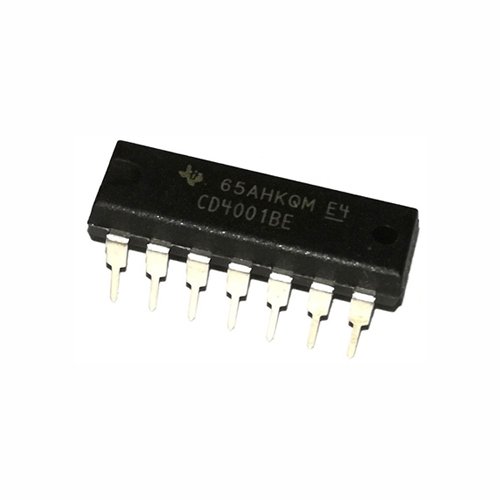

4001 NOR Gate IC
35.00৳
- 4001 NOR Gate IC
- DC Supply Voltage Range:-0.5V to +20V
- Input Voltage Range, all inputs:-0.5V to VDD+0.5V
- DC input Current, any input:±10mA
- Made in China
Description
The CD4001BC or 4001 NOR Gate IC is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drives. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
- DC Supply Voltage Range:-0.5V to +20V
- Input Voltage Range, all inputs:-0.5V to VDD+0.5V
- DC input Current, any input:±10mA
- Made in China
