Description

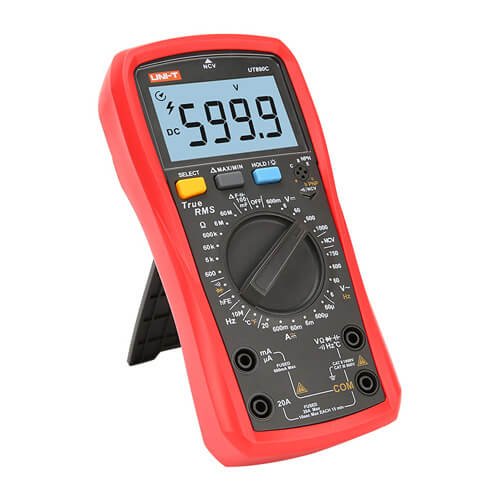

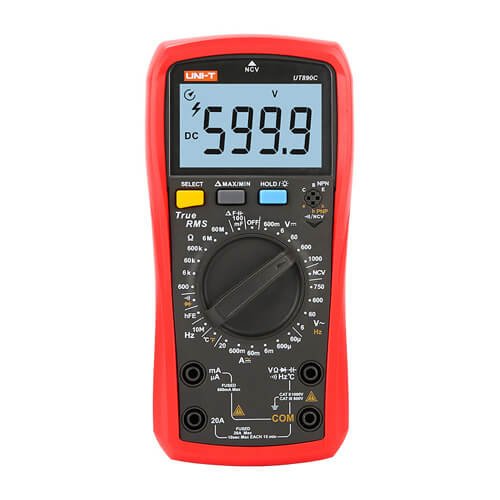

UNI-T UT890C RMS Digital Multimeter With Temperature Tester
The UT890 series 6000-count true RMS digital multimeters are designed with a large LCD display. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890C or UT890D has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.
Models in UT890 Series: UT890C, UT890D
Features of UT890C True RMS Digital Multimeter
- Manual range/True RMS
- Data hold/REL
- Audible/visual alarm (NCV/continuity)
- Current (AC/DC) mode memory
- Low battery indication: ≤2.5V
- NCV/hFE/Max/Min
- Diode test/Continuity test
- High voltage false detection: 1000Vrms
- Over-current alarm: ≥20A
- Auto power off/LCD backlight
Specifications of UT890 Series True RMS Digital Multimeters
| Specification | Range | UT890C | UT890D |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5% 2) | ±(0.5% 2) |
| AC Voltage | 6V/60V/600V/750V | ±(0.8% 3) | ±(0.8% 3) |
| ACV Frequency | 10Hz～10kHz | ±（0.1% 5) | ±（0.1% 5) |
| DC Current | 60uA//600uA/6mA/60mA/600mA/20A | ±(0.8% 8) | ±(0.8% 8) |
| AC Current | 60uA/600uA/6mA/60mA/600mA/20A | ±(1% 12) | ±(1% 12) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8% 3) | ±(0.8% 3) |
| Capacitor | 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/ 600.0μF/6.000mF/60.00mF/100.0mF | ±(3% 10) | ±(3% 10) |
| Frequency | 9.999Hz～9.999MHz | ±(1.0% 5) | ±(1.0% 5) |
| Temperatue | –40℃～1000℃/–40°F～1832°F | ±(1.5% 5) | |
| Features | |||
| Display Count | 6000 | 6000 | |
| Manual Range | √ | √ | |
| NCV | √ | √ | |
| hFE | √ | √ | |
| Diode Test | √ | √ | |
| Continuity Test | √ | √ | |
| Live | √ | ||
| True RMS | √ | √ | |
| Fuse blowing alarm | √ | √ | |
| Acousto-optic indication(NCV/continuity) | √ | √ | |
| High voltage false detection | 1000Vrms | √ | √ |
| Current (AC/DC) mode memory | √ | √ | |
| Over-current alarm | ≥20A | √ | √ |
| Low Battery Indication | ≤2.5V | √ | √ |
| Data Hold | √ | √ | |
| REL | √ | √ | |
| Max/Min | V 、A | √ | √ |
| Auto Power Off | 15Min | √ | √ |
| Backlight | The 30s | √ | √ |
| Operation Temperature | 0℃～40℃ | ||
| Safety | CAT II 1000V/CAT III 600V | ||
| General Characteristics | |||
| Power | 1.5V x 2 | ||
| Product Color | Red and Gray | ||
| Product Net Weight | 346g | ||
| Product Size | 183mm x 88mm x 56mm | ||
| Standard Individual Packing | Gift Box, Manual | ||
| Standard Quantity Per Carton | 40pcs | ||
| Standard carton measurement | 690mm x 450mm x 340mm | ||
| Standard carton gross weight | 23Kg | ||
Applications of UT890 Series True RMS Digital Multimeters
- Live and nature wires identification
- Voltage measurement
- Temperature measurement
- NCV measurement
- and many more.
