Description

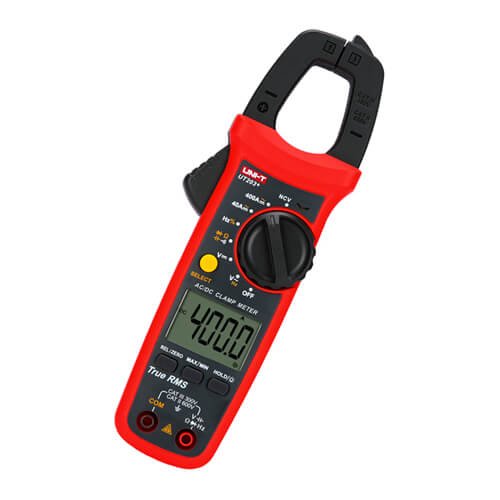

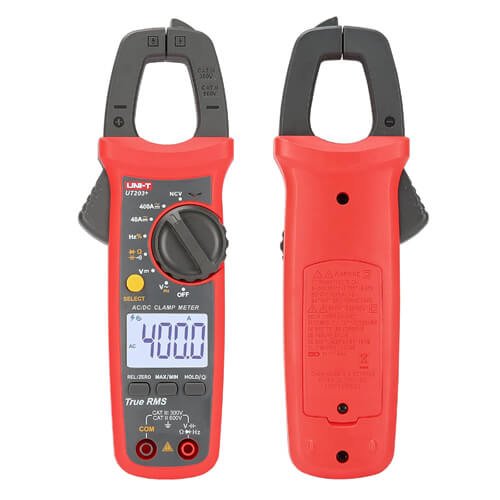

UNI-T UT203 Plus Digital Clamp Meter DC/AC 400A
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
| Specifications | Range | UT203 |
| AC (A) | 400A | ±(2.5% 5) |
| DC (A) | 400A | ±(2.5% 5) |
| AC voltage (V) | 600V | ±(0.8% 5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5% 2) |
| DC voltage (A) | 600V | ±(0.5% 2) |
| Resistance (Ω) | 40MΩ | ±(0.8% 2) |
| Capacitance (F) | 40mF | ±(4% 5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1% 4) |
| Features |
| Display count | | 4000 |
| Auto range | | √ |
| Jaw opening | | 28mm |
| True RMS | | √ |
| NCV | | √ |
| Continuity test | | √ |
| Diode | | √ |
| MAX/MIN | | √ |
| Relative mode | | √ |
| Zero mode | | √ |
| Data hold | | √ |
| Low battery indication | | √ |
| Auto power off | | √ |
| General Characteristics |
| Power | 1.5V battery (R03) x 2 |
| Display | 37mm x 25mm |
| Product Color | Red and grey |
| Product net weight | 235g |
| Product size | 215mm x 63mm x 36mm |

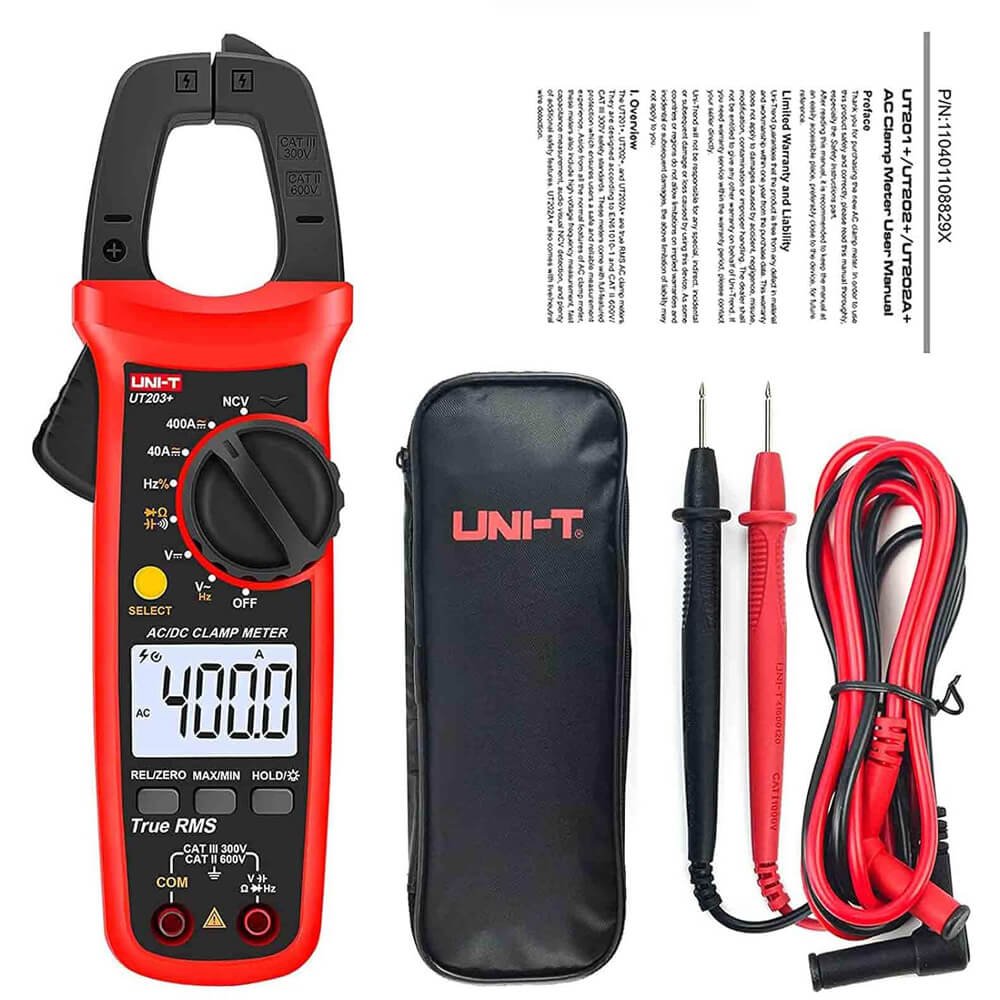

| Standard individual packing | Gift box, Carrying bag, English manual |
| Standard quantity per carton | 40pcs |
| Standard carton measurement | 485mm x 295mm x 385mm |
| Standard carton gross weight | 16.8kg |
Click for More Information
