Description

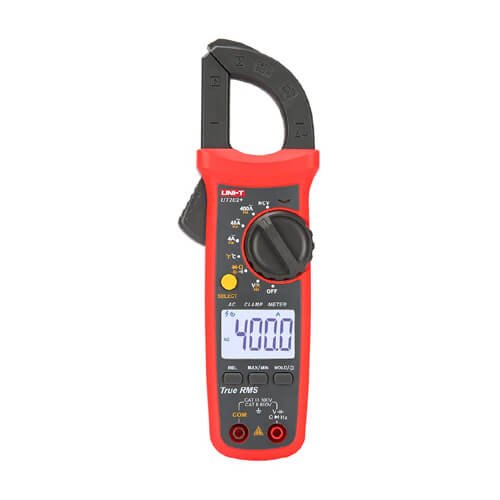

UNI-T UT202 Digital clamp meter 400-600A clamp meter UT200 series automatic range true RMS high precision multimeter
AC/DC Voltage, AC Current measurement, Continuity buzzer, Diode, Resistance Test, MAX/MIN Data, REL, True RMS, Backlight, Frequency, Capacitance Test, Temperature Test.
Features of UT202 Multimeter
- Large screen LCD, fast ADC / analog to digital converter
- Full-featured false detection protection, overvoltage, and overcurrent alarm prompt
- True RMS; voltage measurement 600V
- With high voltage frequency measurement
- AC measurement function
- With the current frequency measurement function
| Specifications | Range | UT202 |
| AC current (A) | 400A | ±(2% 10) |
| 600A | ||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1% 5) |
| DC current (A) | 400A | |
| 600A | ||
| AC voltage (V) | 600V | ±(0.8% 5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1% 5) |
| 10Hz~60kHz | ||
| DC voltage (A) | 600V | ±(0.5% 2) |
| Resistance (Ω) | 40MΩ | ±(0.8% 2) |
| 60MΩ | ||
| Capacitance (F) | 4mF | ±(4% 5) |
| 40mF | ||
| 60mF | ||
| Temperature (℃) | -40℃~1000℃ | ±(1.5% 5) |
| Frequency (Hz) | 10Hz~10MHz | |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | ||
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | ||
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product Color | Red and grey | |
| Product net weight | 248g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard accessories | Batteries, test leads, Thermocouple | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 485mm x 295mm x 385mm | |
| Standard carton gross weight | 17.8kg | |
