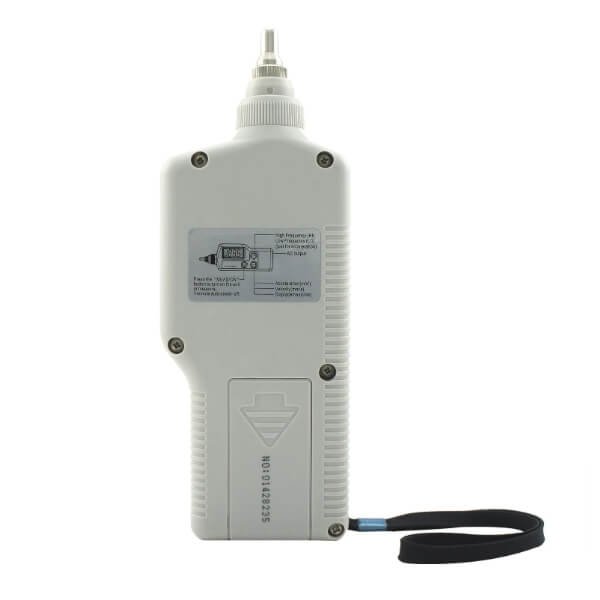

Smart Sensor Portable Vibration Meter AS63A

The vibration meter(also called vibration severity) uses a Piezoelectric Acceleration Transducer to transfer the vibration signal into an electrical signal, analyze the input signals, and show the Acceleration, speed, and shift of the vibration. It is widely used in the lines of Power, petrochemicals, machinery manufacturing, metallurgy, vehicles, etc.

SPECIFICATIONS

• Measuring Principle: Piezoelectric Ceramic Accelerometer (shear-type)
• Acceleration Range: 0.1~199.9m/s2
• Velocity Range: 0.1~199.9m/s
• Displacement Range: 0.001~1.999mm
• Acceleration Frequency Range: 10Hz~1KHz (LO) / 1KHz~15KHz (HI)
• Velocity Frequency Range: 10Hz~1KHz
• Displacement Frequency Range: 10Hz~1KHz
• Accuracy: ±5%H ±2 digits
• Signal Output: AC output 2V peak ( Display full scale )
• Max Hold Function
• Temperature Measurement: ℃/℉Selection

PACKING INFORMATION

• Power: 9V Battery
• Product Net Weight: 147g
• Product Size: 183*67*30mm
• Packing Style: Gift Box
