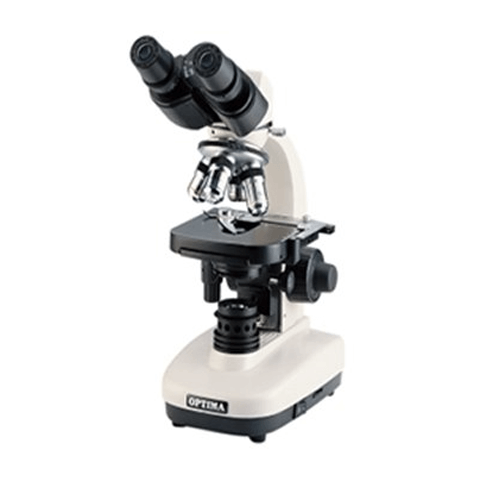

Optima Biological Microscope G-206

৳ 42,000.00

  • Binocular Microscope
  • Model: G-206
  • Brand: Optima by Digisystem
  • Made in Taiwan
Buy product

The OPTIMA® biological microscope G-206 is a standardized optical instrument. It is equipped with achromatic objectives and wide field eyepieces. The structure of G-206 is simple, easy to operate, and maintain. The model is beautiful and dignified. G-206 is the ideal instrument for the beginner or school educational application.

Features

  • G-206 is equipped with wide-field eyepieces.
  • The light source is continuously adjustable with a halogen lamp.
  • The main body is made of aluminum alloy and the structure is stable.
  • By the excellent optical system, it can obtain a wide field, sharp contrast, and comfortable view.
  • 1 Year Warranty
  • Brand: Optima (by Digisystem)
  • Made in Taiwan



Specification of G-206 Binocular Microscope

Model

G-206

Observation tube

Binocular head inclined at 45˚

Interpupillary distance

From 55-75mm

Focusing

Coaxial focusing knob, the coarse focusing range is 15mm and fine focusing is graduated in an increment of 2.5μm

Stage

Mechanical stage, size 120 x 125mm with moving range 35 x 75mm

Eyepiece

WF10X/18

Objective

Achromatic 4X, 10X, 40X (spring), 100X (spring) oil

Condenser

N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

Illumination

6V15W halogen lamp with adjustable light intensity

Power supply

110/220V switchable

Standard accessories

Dust cover, blue and green filters, backup lamp, plano-concave mirror

Optional accessories

WF10X/18 eyepiece with 10/100mm scale, WF15X eyepiece, 20X objective
