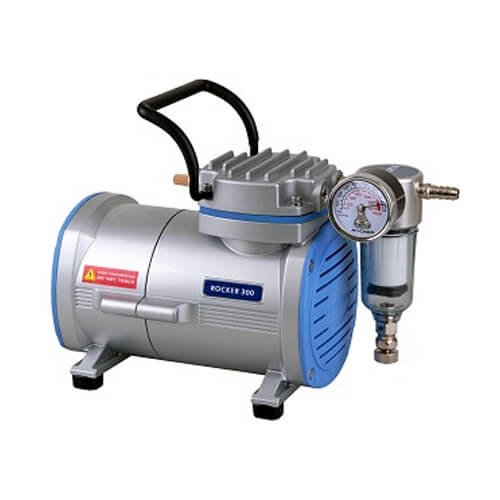

Oil-Free Vacuum Pump Rocker-300 Taiwan

Description

Oil-Free Vacuum Pump

Compact & care-free
Rocker oil-free pumps are compact in size, light in weight, and oil-mist-free, making them the best pal in the laboratory.

Prote™ overflow protection
Equipped with Prote^TM overflow protection to prevent liquid from being sucked into the pump.

• Air inlet protection
  The filter cartridge at the air inlet filters particles and moisture, which prevents pumps from damage.
• Vacuum regulation
  Equipped with a vacuum gauge and regulator for vacuum monitoring and adjustment.
• Overheat protection
  All Rocker oil-free pumps are equipped with an overheat protection device that shuts down when overheated and resumes once cooled down, making the pumps safer and long-lasting.

• Oil Free Vacuum Pump International Certificates

  1. CE certification
  2. UKCA certification
  3. CSA certification
  4. IP 30 protection
  5. RoHS certification



  Oil-Free Vacuum Pump Applications

  • Vacuum filtration
  • Suspended solid test
  • Microbial detect
  • Air sampling

  LOil-Free Vacuum Pump Ordering Information

  Product Part Number	Description
  167300-11	Rocker 300, Vacuum Pump AC110V, 60Hz
  167300-22	Rocker 300, Vacuum Pump AC220V, 50Hz

Specifications of Oil-Free Vacuum Pump:

Rocker 300: 220V/50Hz
▸ Max. power: 60W
▸ Max. current: 0.3A
▸ Max. vacuum: 99 m bar abs.
▸ Max. flow rate: 20 L/min
▸ Noise level: 50 dB
▸ Hose barb: ID8
▸ Net weight: 4.1 Kg
▸ Dimension (LxWxH): 27 x 14 x 20 cm
▸ Vacuum Regulator: Yes
▸ Filter cartridge: Yes
▸ Overflow protection: Yes
▸ Overheat protection: Yes
