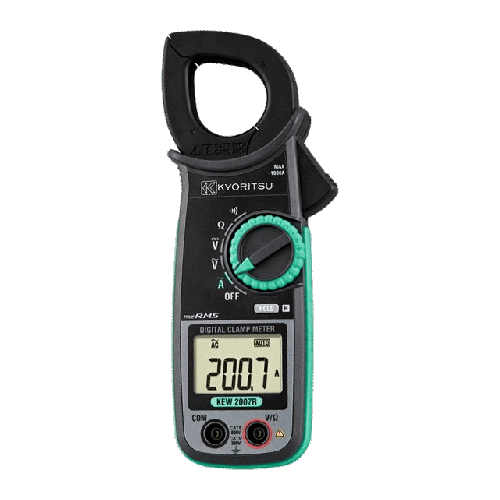

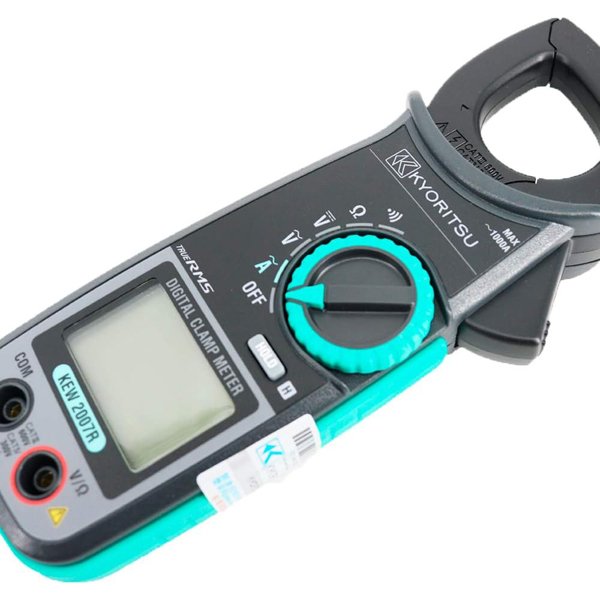

Kyoritsu KEW2007R Digital AC Clamp Meter

Kyoritsu KEW 2007R AC Digital Clamp Meters are rugged reliable and trusted. AC DIGITAL CLAMP METER De Facto Standard 1000A AC Clamp meter CAT 300V MAX 1000A DATA HOLD Fully Safety jaw Ergonomic beyond-molded body gives convenient one-hand operation Large comprehensible-to-retrieve display following Accurate reading gone True RMS 600/1000A auto-ranging Long battery energy, Safety Standard.

Key Features: Kyoritsu KEW 2007R AC Digital Clamp Meters

• Fully Safety jaw
• The ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.1A resolution
• Accurate reading with True RMS
• 600/1000A auto-ranging
• Long battery life
• Safety Standard: IEC 61010-1 CAT IV 300V / CAT III 600V

Specifications of Kyoritsu KEW 2007R Digital AC Clamp Meter:

• AC A 600.0/1000A (Auto-ranging): ±1.5%rdg±4dgt [45 – 65Hz]; ±2.0%rdg±4dgt [40 – 400Hz]
  AC V 600.0V: ±1.2%rdg±3dgt [45 – 65Hz]; ±1.5%rdg±4dgt [40 – 400Hz]
• DC V 600.0V: ±1.2%rdg±3dgt; Ω 600.0Ω/6.000kΩ (Auto-ranging); ±1.3%rdg±5dgt (600Ω); ±2.0%rdg±3dgt (6.000kΩ)
• Continuity buzzer 600Ω (Buzzer sounds below 90Ω)
• Conductor size φ33mm max.
• Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
• IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
• IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)
• Power source R03/LR03 (AAA) (1.5V) × 2
• Continuous measuring time Approx.170 hours (when R03 is used)
• (Auto power save approx. 10 minutes)
• Dimensions 204(L) × 81(W) × 36(D)mm
• Weight 220g Approx. (including batteries)

Included Accessories

• 7066A (Test leads)
• 9079 (Carrying case)
• R03 (AAA) × 2, Instruction Manual
